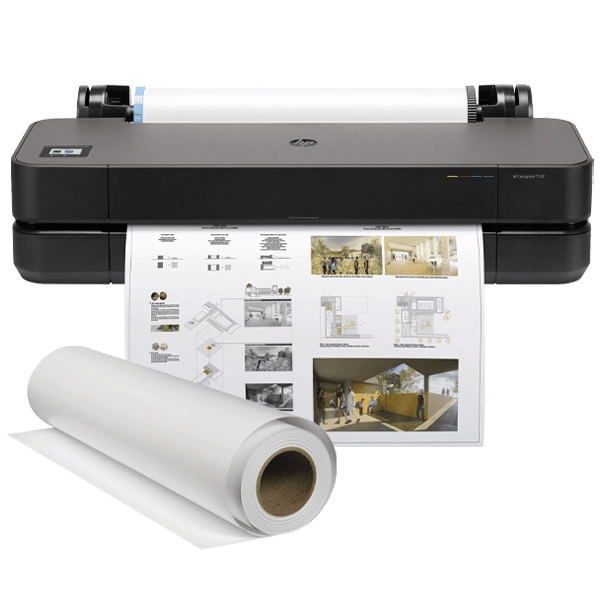

HP DesignJet T230 24-in Printer front view

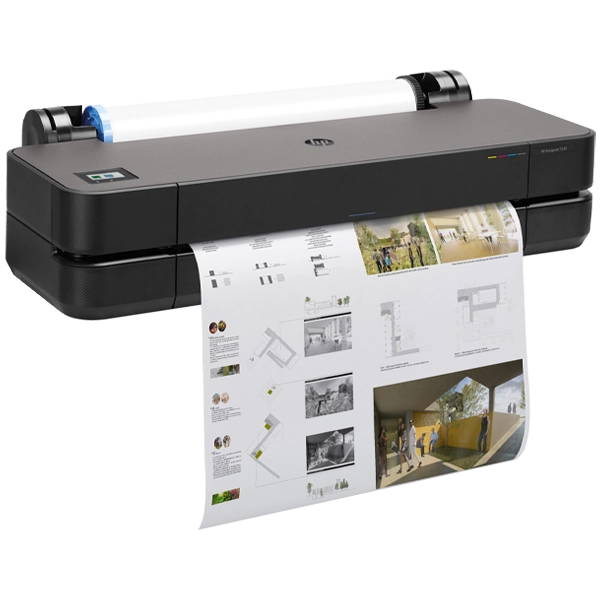

HP DesignJet T230 24-in Printer side view

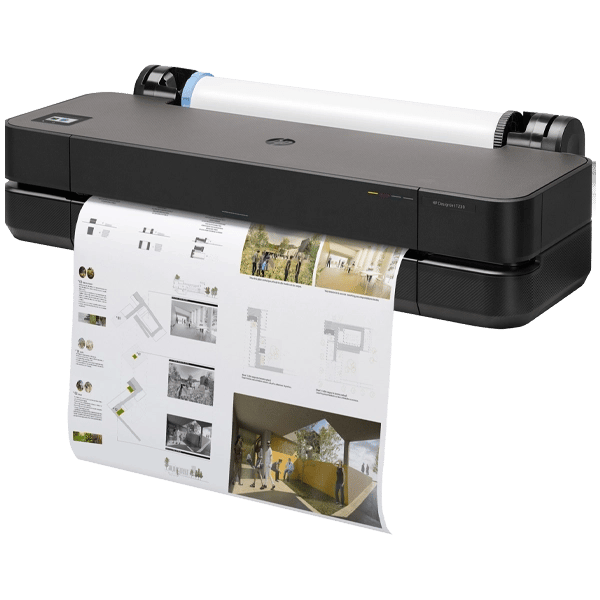

HP DesignJet T230 24-in Printer alternative side view

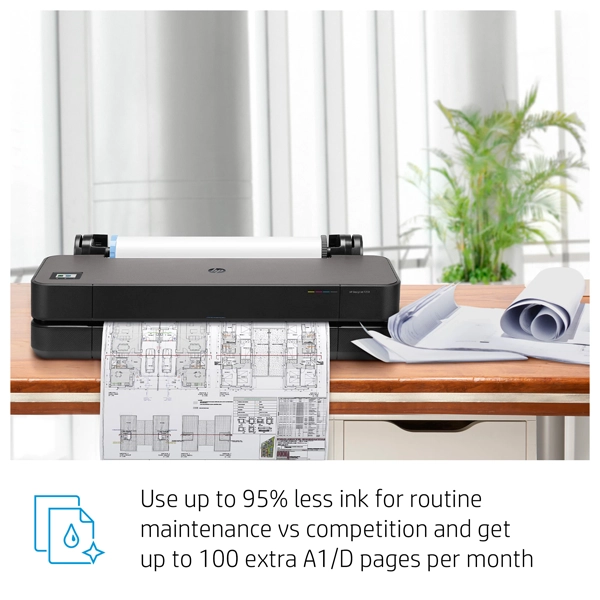

HP DesignJet T230 24-in Printer uses up to 95% less ink

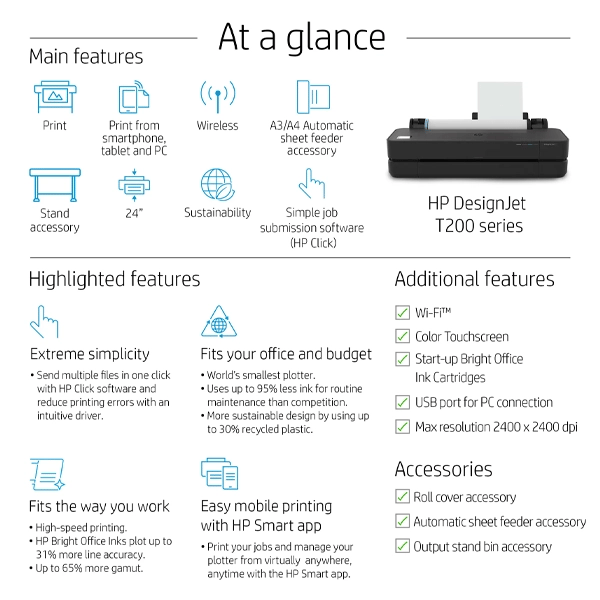

HP DesignJet T230 24-in Printer statistics

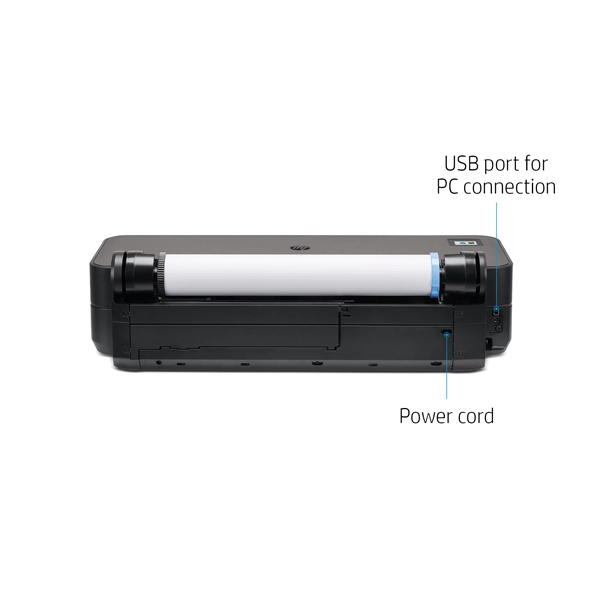

HP DesignJet T230 24-in Printer connections

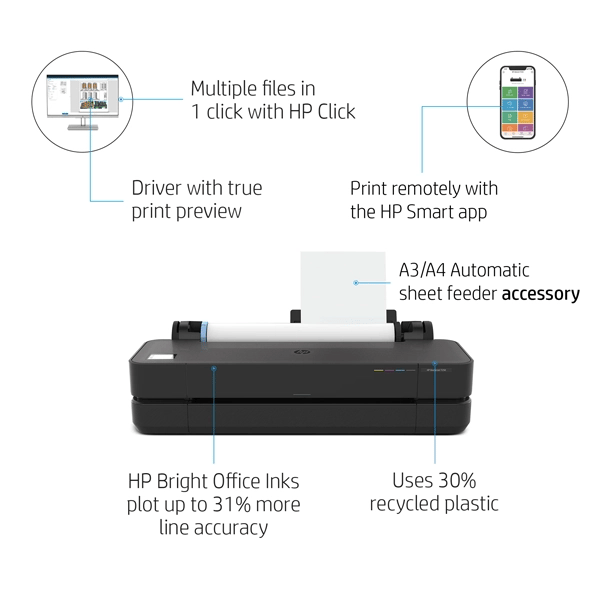

HP DesignJet T230 24-in Printer features

HP DesignJet T230 24″ Printer 2025 Edition with 2-year Warranty

Name: HP DesignJet T230 24" Printer 2025 Edition with 2-year Warranty
SKU: 5HB07T#B1K
Availability: InStock

SKU 5HB07T#B1K

Be the first to leave a review.

$1,045.00

FREE Shipping & FREE Installation

Receive a complimentary roll of 24″ bond paper with this printer purchase!

Printing speed on D size paper is 35 seconds per page, with a capacity of 68 prints per hour.
Supports printing from letter size up to 24 inches by 150 feet.
Achieves color print resolution at its best, reaching up to 2400 by 1200 dpi.
Equipped with sheet feed, roll feed, and automatic horizontal cutter functionalities.
Features dynamic security to ensure printer integrity and data protection.

Returns & Exchanges

For more information click here

Description

Get ready for a plotter that fits right into your workspace and budget while keeping things simple. These are the world’s smallest plotters, making printing a breeze. Just click once to send multiple files and get your A1/D plots in as quick as 35 seconds. Plus, they come with 500 MB memory.

Streamlined Efficiency

Streamline your workflow with effortless job submissions—send multiple files effortlessly with a single click using HP Click. Experience printing confidence with an intuitive driver and a true-to-life print preview. Seamlessly print diverse A3/B and A1/D projects without the hassle of manual media source switching, thanks to accessory options.

Tailored to Your Workspace and Budget

Maximize office space utilization with the compact footprint of the industry’s smallest plotters, custom-designed to harmonize with your office environment. Enjoy up to 95% less ink usage for routine maintenance compared to competitors, yielding an additional 100 A1/D pages per month. Embrace sustainability with designs crafted to reduce CO2 emissions by up to 7.3 tons per year through the incorporation of up to 30% recycled plastic.

Adaptable to Your Workflow

Eliminate idle time at the printer with high-speed printing capabilities clocking in as fast as 35 seconds per A1/D plot. Boost productivity with up to 2X faster printing, shaving off valuable time from project preparation to final print. Take control of your printing tasks and manage your plotter remotely from any location, at any time, with the intuitive HP Smart app.

Perfect for AEC, GIS, and MCAD pros who need sharp maps, technical drawings, posters, and renders, this printer ensures top-notch quality every time.
Printing with the world’s smallest wide-format printer is easy and affordable. It’s super simple to use, saves you time, and cuts down on waste by using up to 95% less ink for routine maintenance.
Keep in mind, this printer only works with cartridges that have a new or reused HP chip. It’s got dynamic security to block non-HP chip cartridges. And don’t forget, using a reused HP chip means you can use remanufactured, refilled, or reused cartridges.
Plus, it’s eco-friendly! With up to 30% UL Validated recycled plastic, it slashes CO2e emissions by up to 7.3 tons/year per unit sold. And you can recycle HP ink cartridges and printheads hassle-free with HP Planet Partners. It’s ENERGY STAR® certified and EPEAT® registered, too.

HP DesignJet T230 24-in Printer with 2-year Warranty Datasheet

Recommended Support:

Recommended Accessories:

Recommended Ink Supplies:

Additional Information

Weight	61.7 lbs
Dimensions	45.5 × 22.6 × 15.9 in
Functions	Print
Print speed, maximum	35 sec/page on D, 68 D prints per hour
Resolution (color)	Up to 2400 x 1200 optimized dpi
Print technology	HP Thermal Inkjet
Number of print cartridges	4 (C, M, Y, K)
Compatible ink types	Dye-based (C, M, Y); pigment-based (K)
Connectivity, standard	Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct
Non-printable area (cut-sheet)	0.2 x 0.2 x 0.2 x 0.7 in (manual feed); 0.2 x 0.2 x 0.2 x 0.2 in (input tray)
Line accuracy	±0.1%
Maximum optical density (black)	8 L* min/2.10 D
Media sizes supported	A, B, C, D A4, A3, A2, A1
Media sizes, custom	8.3 x 11 to 24 x 74.7 in
Media types	Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)
Media sizes, standard	11 to 24 in
Roll external diameter	3.9 in
Media thickness	Up to 11.8 mil
Power	Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
Power consumption	<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)
Operating temperature range	41 to 104ºF
Warranty	Two-year limited hardware warranty
Software included	HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant
Dimensions (W X D X H)	39.9 x 17.3 x 11.2 in
Weight	47.4 lb
Package weight	61.7 lb
What's in the box	HP DesignJet T230 24-in Printer, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
Sustainability impact	More sustainable design reduces CO2e up to 7.3 tons/year by units sold by using up to 30% UL Validated recycled plastic.; Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC®-certified papers and a range of recyclable HP media with a take-back program; ENERGY STAR® certified; EPEAT® registered
Dynamic security	Dynamic security enabled printer. Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.
